| Τόπος καταγωγής: | Shenzhen Κίνα |
| Μάρκα: | Jnicon |
| Πιστοποίηση: | TUV , UL , CE ,CQC ,ROHS |
| Αριθμό μοντέλου: | M25 |
| Ποσότητα παραγγελίας min: | 100 (10 ζεύγη δειγμάτων) |
|---|---|
| Τιμή: | negotiable |
| Συσκευασία λεπτομέρειες: | 1. Πλαστική σακούλα, 2. Χαρτοκιβώτιο, 3. Σύμφωνα με τις απαιτήσεις του πελάτη |
| Χρόνος παράδοσης: | 3 - 5 ημέρες |
| Όροι πληρωμής: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
| Δυνατότητα προσφοράς: | 10000 σετ / ημέρα |
| Αριθμός συνδέσμου: | 5 PIN για τροφοδοσία | Συνδετήρας: | Σύνδεσμος συναρμολόγησης αρσενικού και θηλυκού |
|---|---|---|---|
| Αδιάβροχη Βαθμολογία: | IP67 | Εφαρμογή: | Εξοπλισμός Υψηλού Ρεύματος / Αυτοματισμός |
| Υλικό: | PA66 / Πλαστικά | MOQ: | 1 Σετ |
| Επισημαίνω: | 30A waterproof power connector,5 pin circular connector M25,male female waterproof connector |
||

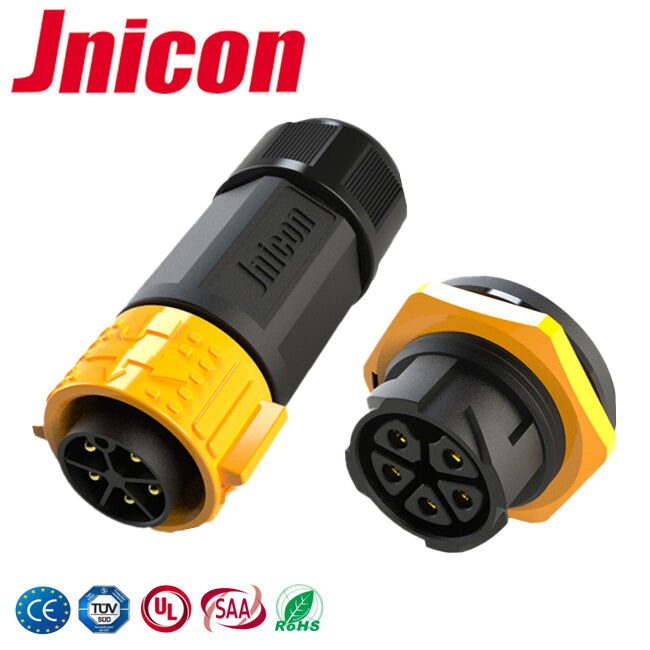

Application of Connector
M25 outdoor waterproof connectors mainly appliy in equipment which require high current .
M25 waterproof plug socket circular connector also name male to female connector
Wildly applied in outdoor LED lighting , LED display , communication , automation , new energy , marine electronics , armarium , security and protection automotive lighting harness market etc .
Except for the application above , we can also offer the service of customizaed connectors and cable assembly
| Specification | |||
| Product Name | High Current Industrial Circular Connector | ||
| Pin / Pole | 5Pin | ||
| Operating Current / Voltage | 30A / 300v | ||
| Withstanding Voltage | 2000V | ||
| Waterproof Rating | IP67 | ||
| Cable Gauge | MAX6.0mm2 | ||
| Diameter Range | φ6 - φ16 | ||
| Temperature | -40℃ - 105℃ | ||
| Material | |||
| Housing / Shell | High - performance engineering plastics / PA66 | ||
| Copper Needles | Copper Alloy | ||
| Contact Way | |||
| Connecting mode | Screw Type / Push Lock | ||
| Method of connecting wire | Solder / Weld | ||
You are interested in this waterproof plug socket connector
Please do as following one by one :
Picture Display
![]()
FAQ
Q : What about the delivery time ?
A : In general , about 3 working days after payment received .
Q : Can you provide the samples ? Are the samples free ?
A : Yes , we can support 1 - 3 sets sample free one time for quality test befor bulk order , but the shipping cost need to be paid .
Q : Can you provide the price list of all the product ?
A : We can provide the price of the connector you want , after all there are so many product in our company and the price always changes according to the demand of market
Q : Where is your company ?
A : Shenzhen guangdong , China .
